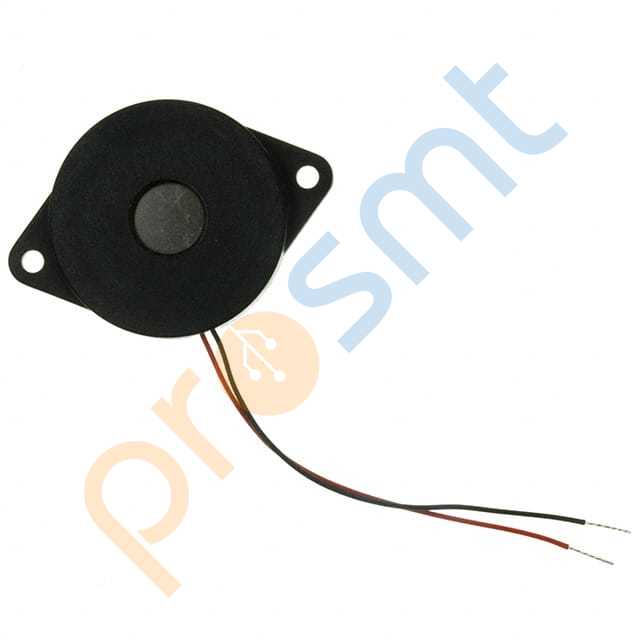

PT-2404 AUDIO PIEZO XDCR 1-15V CHASSIS - ALARM, BUZZER, SIREN
0,00 TL +KDV
Kategori
Marka
Stok Kodu
K000221
Piyasa Fiyatı
gizle
Fiyat
0,00 USD + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri
PT-2404 AUDIO PIEZO XDCR 1-15V CHASSIS
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PT-2404 |
| Mfr | Soberton Inc. |
| Description | AUDIO PIEZO XDCR 1-15V CHASSIS |
| Series | PT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 15 V |
| Voltage Range | 1 ~ 12V |
| Frequency | 4.8kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 4.8V, 10cm |
| Current - Supply | 8mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 0.945" Dia (24.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
