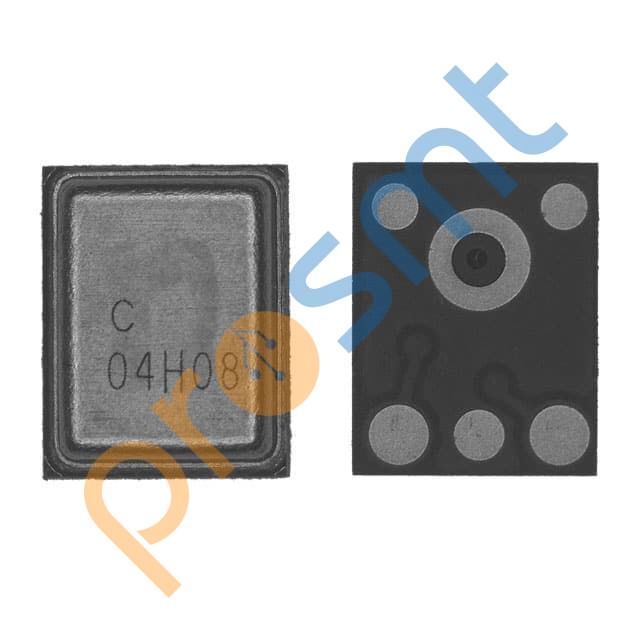

MA-BRA381-A11-4 BP ANALOG MEMS MIC 3.76X2.95 - MIKROFON | MIC
0,00 TL +KDV
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri
MA-BRA381-A11-4 BP ANALOG MEMS MIC 3.76X2.95
DB Unlimited mikrofon MN045302-1. 100 Hz ~ 10.0 kHz, Circular, MEMS (Silicon), -54dB ±3dB, Noise Cancelling, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | MA-BRA381-A11-4 |
| Mfr | Gettop Acoustics |
| Description | BP ANALOG MEMS MIC 3.76X2.95 |
| Series | - |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 10.0 kHz |
| Sensitivity | -38dB ±1dB @ 94dB SPL |
| S/N Ratio | 64dB |
| Impedance | 400 Ohms |
| Voltage - Rated | 2 V |
| Voltage Range | 1.6 V ~ 3.6 V |
| Current - Supply | 200 µA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.148" L x 0.116" W (3.76mm x 2.95mm) |
| Height (Max) | 0.047" (1.20mm) |
| Shape | Rectangular |
