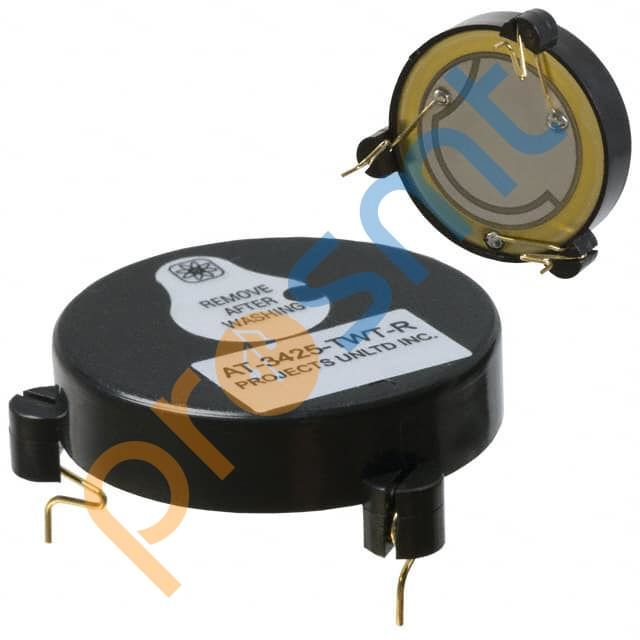

AT-3425-TWT-R AUDIO PIEZO TRANSDUCER 3-28V TH - ALARM, BUZZER, SIREN
0,00 TL +KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri
AT-3425-TWT-R AUDIO PIEZO TRANSDUCER 3-28V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AT-3425-TWT-R |
| Mfr | PUI Audio, Inc. |
| Description | AUDIO PIEZO TRANSDUCER 3-28V TH |
| Series | AT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 28V |
| Frequency | 2.5kHz |
| Technology | Piezo (with Feedback) |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 12V, 10cm |
| Current - Supply | 7mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.323" Dia (33.60mm) |
| Height - Seated (Max) | 0.606" (15.40mm) |
